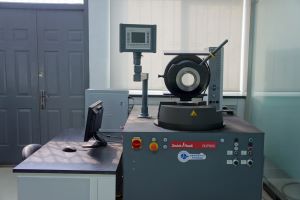

Manufacturer: Zwick (Germany)

Model: BUP600

Location: Room 104 of Science and Technology Building

Person-in-charge: Zhang Yan

Tel.: 62332598-6103

Main functions

Used to detect the forming properties of sheet metal, and can be used to perform tests such as cupping, drawing, reaming, conical cup, earing, bending and rebound, as well as hydraulic bulge, and determination of forming limit curve.

1) Cupping test: in accordance with GB/T 4156-2007, specimen thickness: 0.1-2.0 mm.

2) Drawing test: in accordance with GB/T 15825.3-2008, specimen thickness: 0.45 ~ 2.64 mm.

3) Conical cup test: in accordance with GB/T 15825.6-2008, specimen thickness: 0.5 ~ 1.6 mm.

4) Earing test: in accordance with GB/T 15825.7-2008 (ISO/11531: 1994, IDT standard), specimen thickness: 0.4 ~ 3 mm.

5) Reaming test: in accordance with GB/T 15825.4-2008 (ISO/FDIS 16630: 2008, IDT standard), specimen thickness: 1.2 ~ 2.29 mm.

6) Forming limit test: in accordance with GB/T 15825.8-2008 (ISO/FDIS 12004-2: 2008, IDT standard), specimen thickness: 0.5 ~ 3 mm.

7) Hydraulic bulge test: specimen thickness: 0.5 ~ 3 mm.

8) Bending and rebound test: in accordance with GB/T 22565-2008 (ISO/24213: 2008, IDT standard), specimen thickness: 0.5 ~ 3 mm.

Main technical parameters:

1) Max. punching pressure: 600 kN

2) Standard pressing force: 12 ~ 600 kN (stepless adjustable)

3) Max. stroke: 120 mm

4) Max. plate width: 260 mm

5) Max. testing speed: 750 mm/min.
