Manufacturer: DSI (USA)

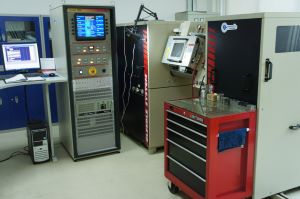

Equipment model: GLEEBLE 3500

Location: Room 106 of Science and Technology Building

Person-in-charge: Guo Jin

Tel.: 62332598-6103

Main functions

Used to perform thermal deformation or heat treatment of various metal material specimens, acquire corresponding data, and explore and analyze the thermodynamic behavior of the materials. It can simulate various types of hot processing, such as forging, rolling, welding, continuous casting and various heat treatments.

Type of experiments: normal temperature tensile/compression test, high-temperature tensile/ compression test, thermal fatigue test, true stress/true strain curve, phase change study, welding heat affected zone, melting and freezing test, heat treatment, etc.

Data acquired: time, temperature, load, displacement, change in length, change in radial direction, true stress, true strain, etc.

Main technical parameters：

Temperature range: room temperature ~ 1,450°C

Heating method: resistance heating

Ambient atmosphere: vacuum, argon atmosphere protection

Max. load: 10 t (static load); 5 t (dynamic load, at displacement speed of 1,000 mm/s)

Displacement speed: max.: 1,000 mm/s; min.: 0.01 mm/s

Cooling method: heat transfer cooling, compressed air cooling and aerosol cooling

Cooling rate: max. cooling rate 200°C/s at T85 during heat transfer cooling

Max. cooling rate 2,000°C/s at T85 during aerosol cooling

Laboratory appointment:

http://202.204.49.249/Equipment/Show?Id=7803cadf-413d-4e60-b20c-ed4ca26e31ce
