Manufacturer: Shenzhen Sans Material Test Instrument Co., Ltd.

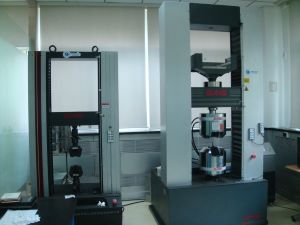

Equipment models: CMT5105 and CMT5605

Location: Room 105 of Science and Technology Building

Person-in-charge: Zhang Yan

Tel.: 62332598-6103

Main functions：

Used to conduct mechanical property test of various materials under tension,      compression, bending, etc.

Determination of strain and elastic modulus in different directions.

Determination  of n and r values of sheet metal.

Mechanical  property test of superplastic materials.

Low-cycle fatigue test.

Main technical parameters：

(1) Model: CMT5105

Max. load: 100 kN

Loading speed: 0 ~ 500 mm/min.

Specimen thickness: 0 ~ 10 mm

Specimen width: 0 ~ 40 mm

Experimental temperature: room temperature ~ 900°C

Accessories: equipped with high-temperature furnace that can be used for testing high-temperature mechanical properties; max. temperature: 900°C

(2) Model: CMT5605

Max. load: 600 kN

Loading speed: 0 ~ 250 mm/min.

Specimen thickness: 0 ~ 15 mm

Specimen width: 0 ~ 80 mm

Test temperature: room temperature
